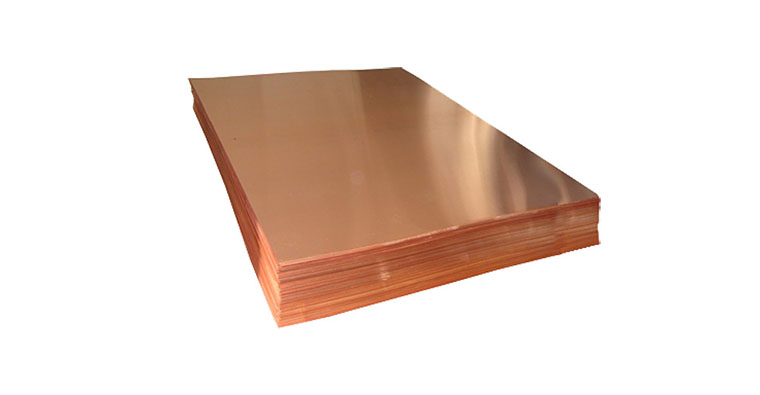

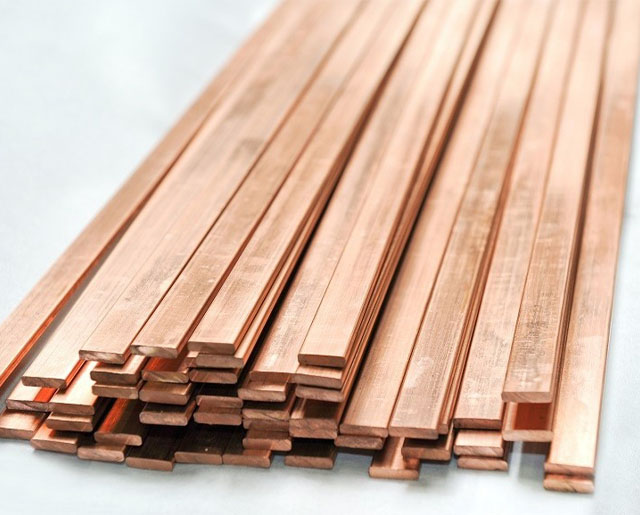

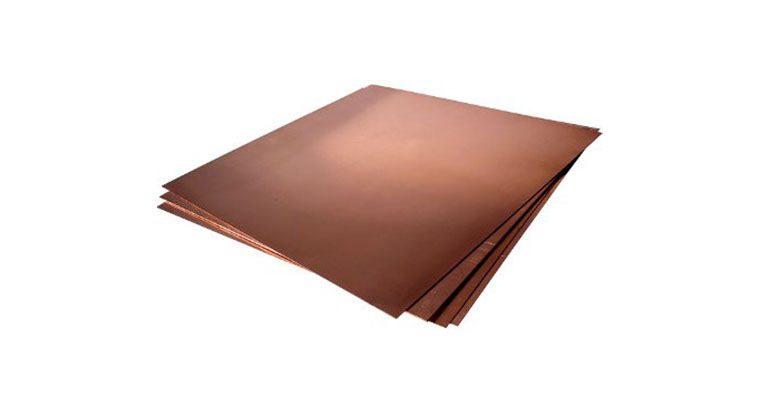

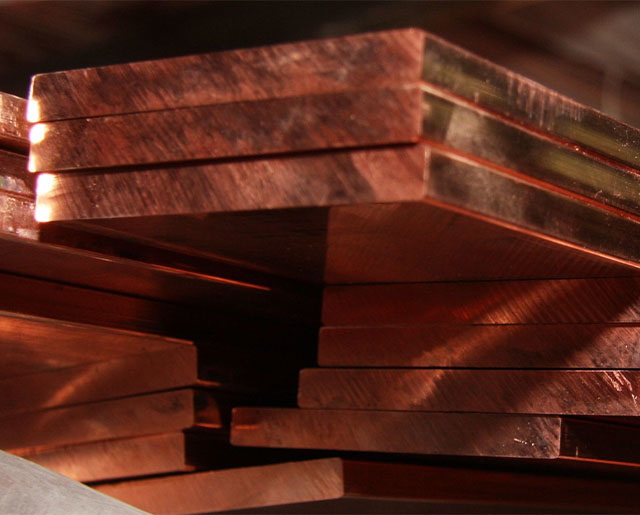

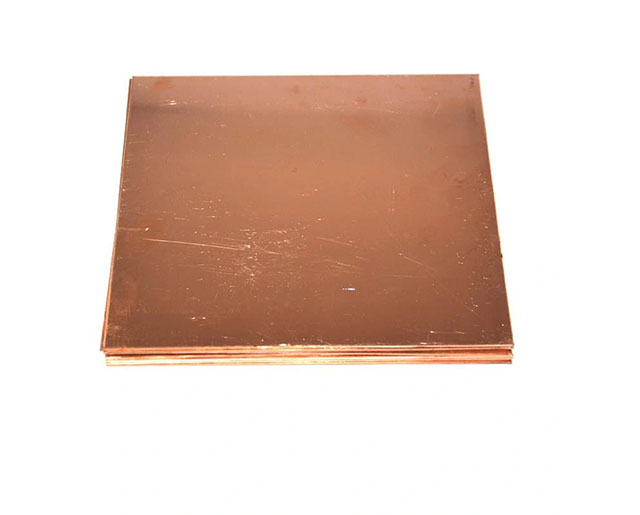

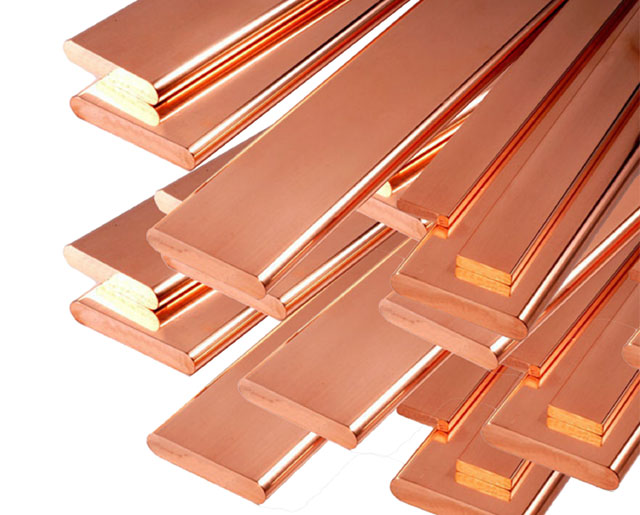

C11100 Copper Plate

Have a better electrical conductivity, thermal conductivity, corrosion resistance and processing performance, can be welded and brazed. But contains lower electrical conductivity, thermal conductivity impurities, higher oxygen content, more likely to cause “hydrogen disease”, can not be at high temperatures (such as > 370 ℃) reducing atmosphere in the processing (annealing, welding, etc.) and use.

● Mechanical properties:

Tensile strength σb (MPa): ≥205

Elongation δ10 (%): ≥30

Note: Room temperature tensile mechanical properties of the strip

Specimen size: thickness ≥0.3

Heat treatment specification: hot working temperature 900～1050℃; annealing temperature 500～700℃; start temperature of recrystallization of cold work hardening copper 200～300℃.
