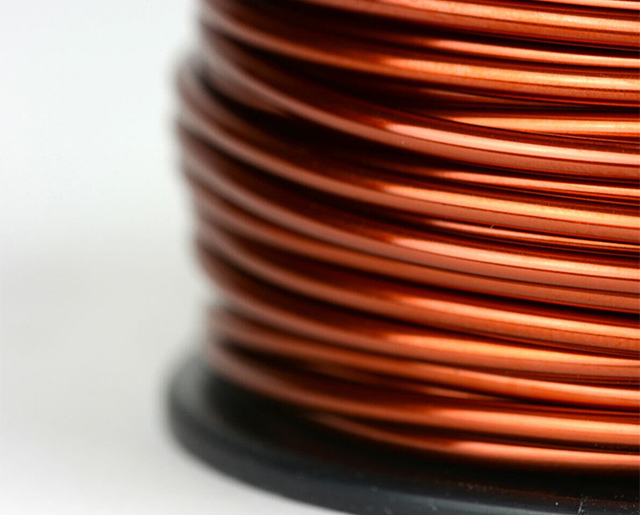

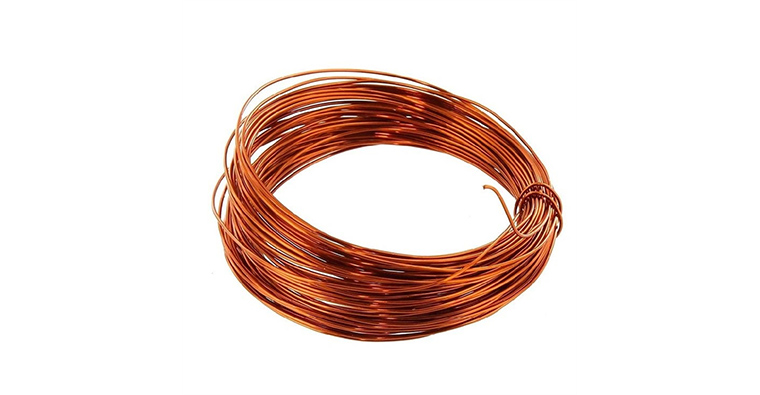

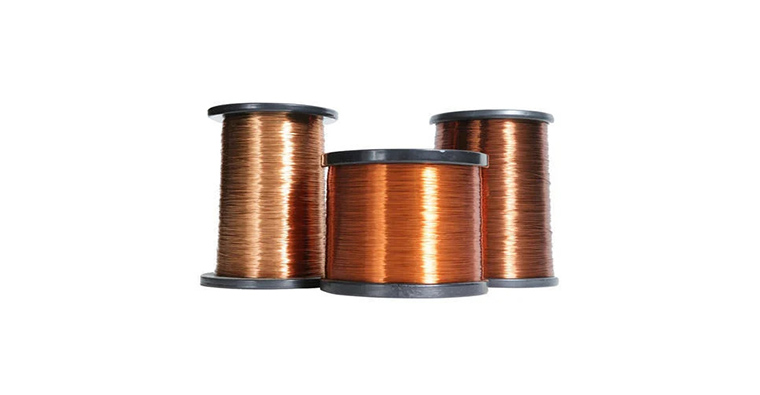

C21000 wires are known for their excellent electrical conductivity and are often used in electrical and electronic applications where the efficient transmission of electrical signals is essential. The high conductivity of the C21000 minimises energy loss during transmission, making it the first choice for power distribution, telecommunications and electronic cabling. This property is particularly beneficial in applications where reducing heat generation and energy efficiency are the most important issues.
In addition to its excellent electrical performance, the C21000 copper wire is also appreciated for its strength and durability. This alloy has a high tensile strength, enabling it to withstand mechanical stress and physical wear in harsh environments. Whether used for electrical connections, grounding systems, or as part of a structural component, the combination of electrical properties and mechanical elasticity makes C21000 copper wire a versatile material that can be used for a wide range of applications, contributing to the overall efficiency and reliability of electrical and electronic systems.
Form | Temper | Temper Code | Tensile Strength (ksi) |
YS-0.5% Ext (ksi) |
Elongation (%) |
Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) |
Torsion Modulus (ksi) |
Ultimate Tensile Strength in Shear (ksi) |
Section Size (in) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Flat Products | 1/2 Hard | H02 | 48 Typ | 40 Typ | 12 Typ | 52 Typ | 54 Typ | 34 Typ | 0.04 | |||
1/4 Hard | H01 | 42 Typ | 32 Typ | 25 Typ | 32 Typ | 0.04 | ||||||
1/4 Hard | H01 | 42 Typ | 32 Typ | 25 Typ | 38 Typ | 44 Typ | 32 Typ | 0.04 | ||||
Extra Hard | H06 | 61 Typ | 55 Typ | 4 Typ | 70 Typ | 64 Typ | 39 Typ | 6.4 Typ | 0.04 | |||
Hard | H04 | 56 Typ | 50 Typ | 5 Typ | 64 Typ | 60 Typ | 37 Typ | 0.04 | ||||
Hard | H04 | 56 Typ | 50 Typ | 5 Typ | 37 Typ | 0.04 | ||||||
Nominal Grain Size 0.015 mm | OS015 | 38 Typ | 14 Typ | 42 Typ | 60 Typ | 15 Typ | 30 Typ | 0.04 | ||||
Nominal Grain Size 0.035 mm | OS035 | 35 Typ | 11 Typ | 45 Typ | 52 Typ | 4 Typ | 28 Typ | 0.04 | ||||
Nominal Grain Size 0.050 mm | OS050 | 34 Typ | 10 Typ | 45 Typ | 46 Typ | 0.04 | ||||||
Spring | H08 | 64 Typ | 58 Typ | 4 Typ | 40 Typ | 0.04 | ||||||
Spring | H08 | 64 Typ | 58 Typ | 4 Typ | 73 Typ | 66 Typ | 40 Typ | 0.04 |
